Horizontal Circulation

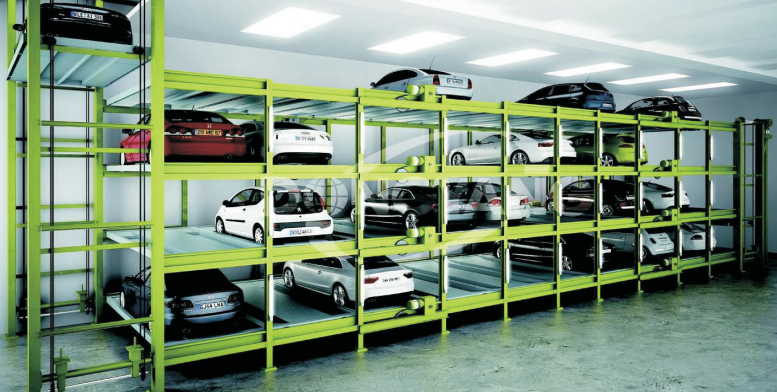

Horizontal Circulation is a system meant for parking cars in tight spaces that lack driveways, thus using the space most effectively in small and middle sized buildings. The system operates in a manner similar to that of a conveyor type chain drive arrangement. Horizontal Circulation system can be installed in underground basements as well as podium levels.

Features

  • Fully automatic operation
  • Entrance: top (End), Middle (Side) and Bottom (Side)
  • Size of Vehicle: 5050mm (L) x 2000mm(W)x 1650mm (H)
  • Vehicle weight: 2000 Kg. Max.
  • Elevating power: 10-15 Kw.
  • Elevating Speed 15-20 meters/min
  • Horizontal Movement Power:3.75-5.5 Kw.
  • Horizontal Speed: 15-20 meters/min.
  • Operation type: PLC control Panel with Touch screen display

Safety

  • Mechanical trouble detecting & indicating function.
  • Car Size & Position detecting sensors.
  • Equipped with anti-fall device. 1650mm (H)
  • • Equipped with over run detection & prevention equipment.
    • Supply: 220v, 415v, 3ph, 50 Hz.
