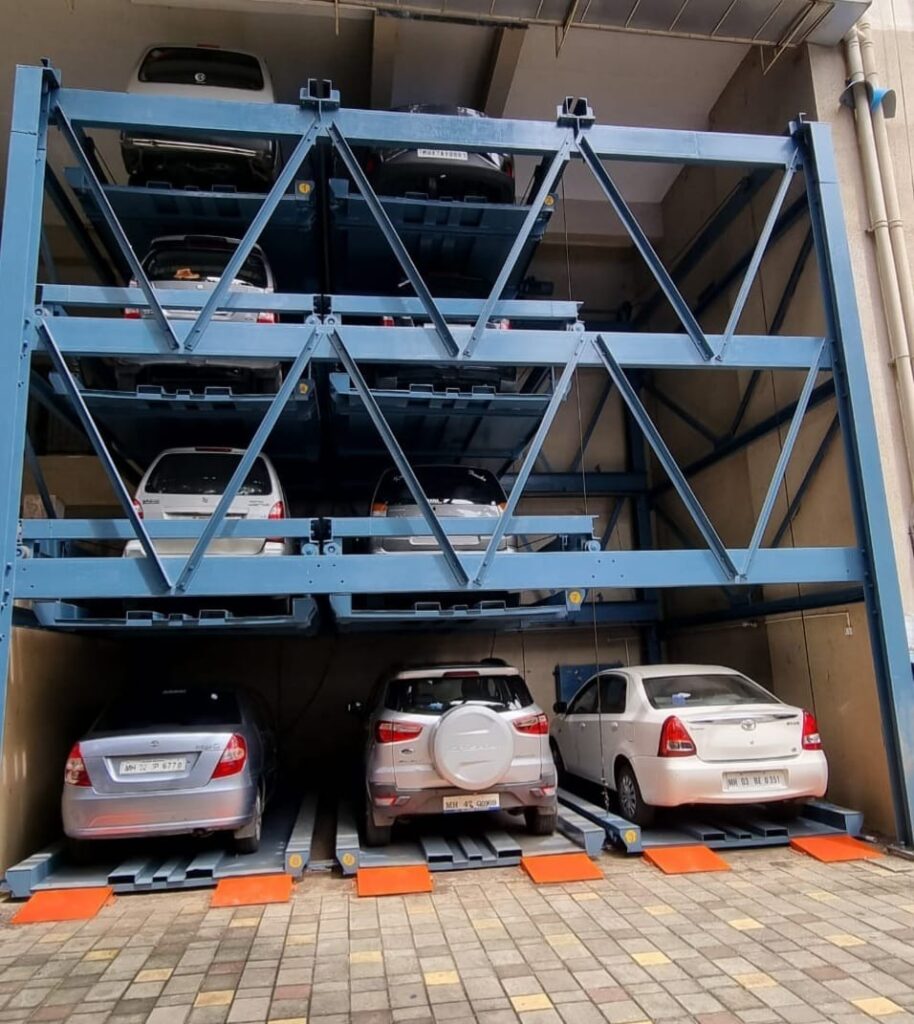

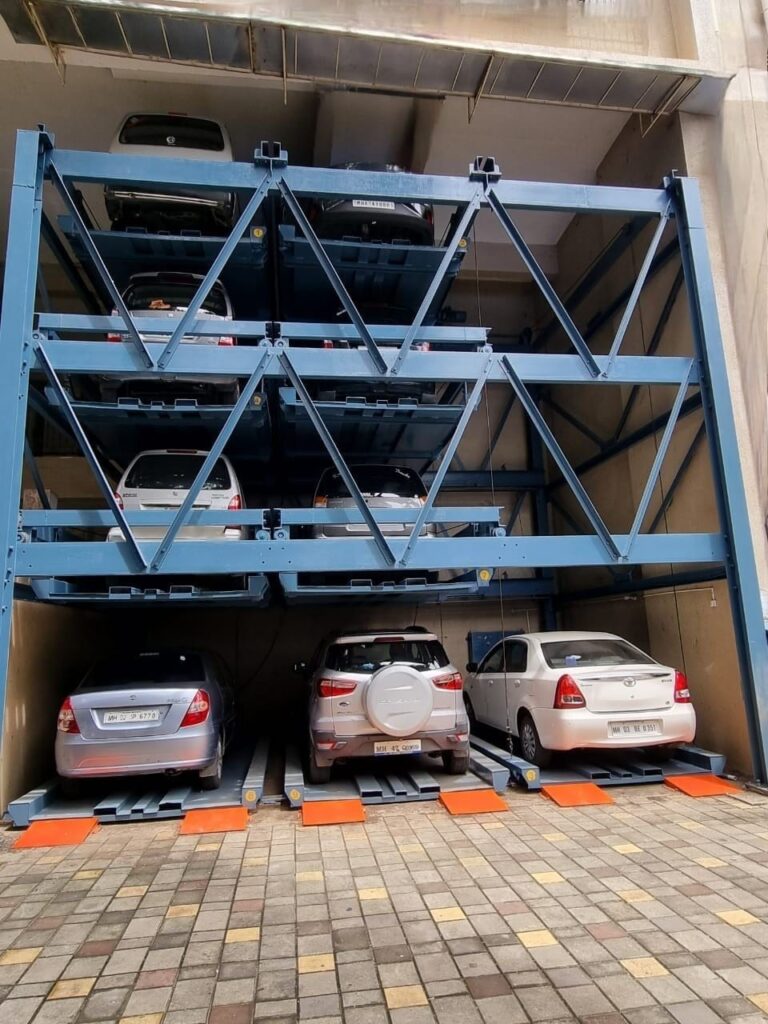

Puzzle Level Parking

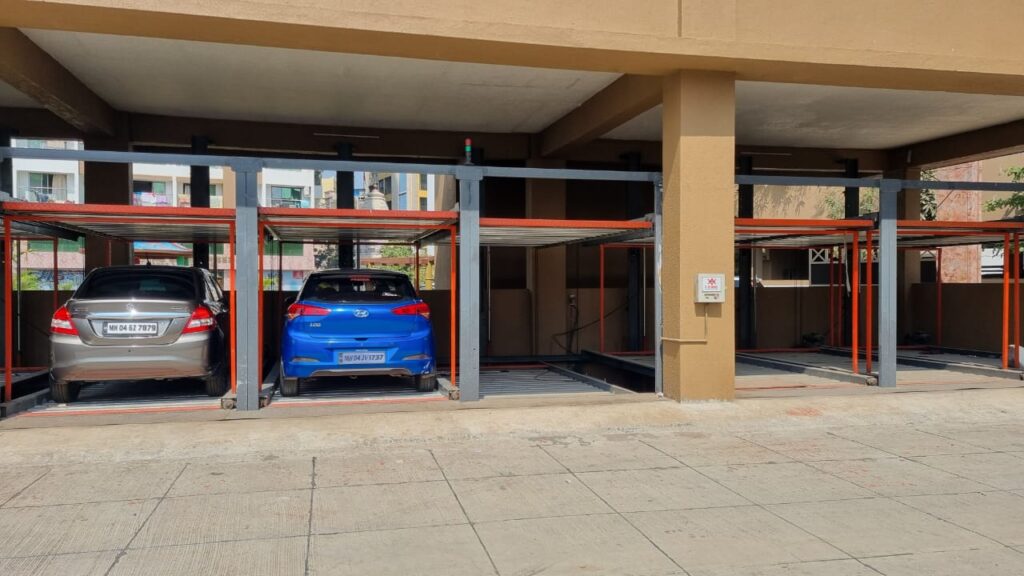

This system features combination pallets carrying cars. Individually load and unload of the cars is possible. This system is electromechanically operated. Fast IN & OUT of the cars is possible. Easy maneuvers of the cars. Combination of multiple levels vertically &horizontally is possible. We have specially designed PIT type Puzzle parking system also. Suitable for Indoor & Outdoor installations. Mostly preferred in residential complexes, IT Parks commercial complexes, malls, hotels etc.

Features

  • No. of cars per unit: Variable
  • Lifting capacity upto 2000 Kgs. (Car Weight)
  • 45-50 Sec Lifting Time
  • Sliding Time 15-20 second per platform.
  • Upper stack lifting with hydraulic / mechanical power pack lower stack sliding with motor
  •  Chain mechanism; integrated system with touch screen / keyboard operation
  • Power supply 415 V 3 Phase 50 Hz
  • Power consumption up to 0.03 units per stack Lifting and 0.01 units per Sliding operation (approx.)
