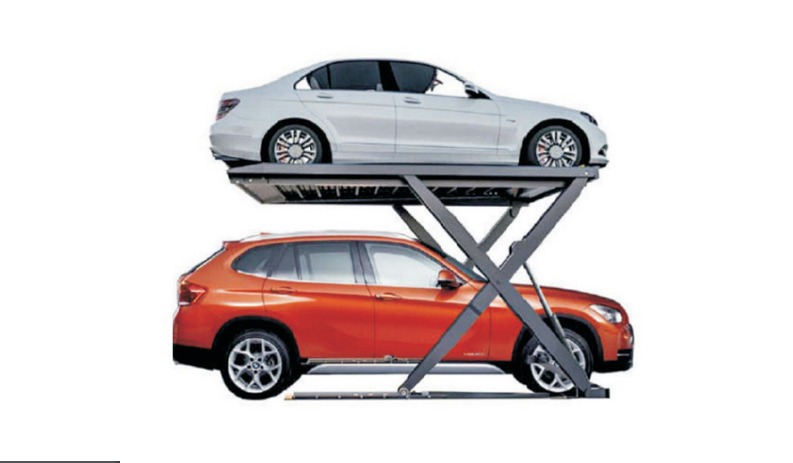

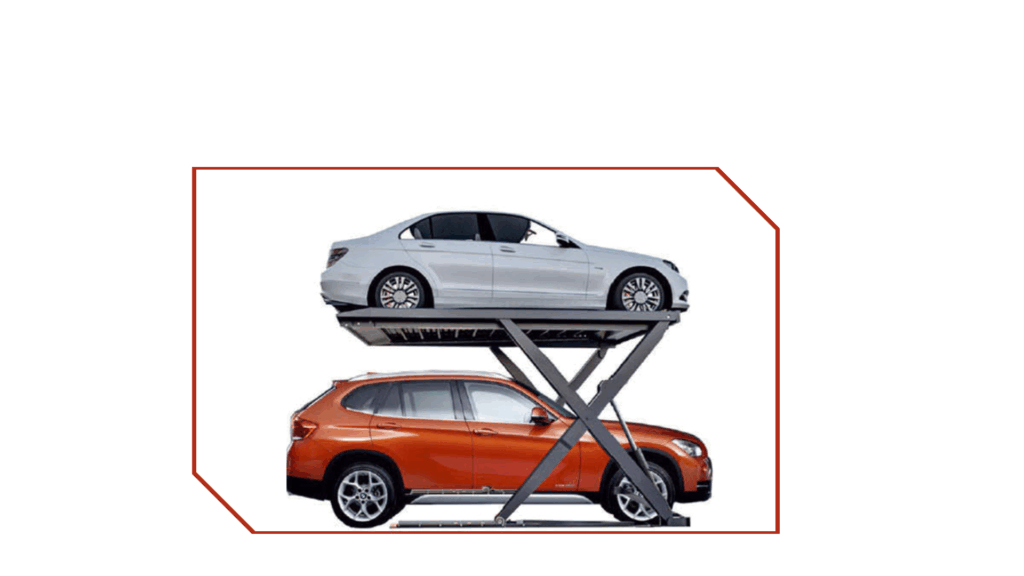

scissor car parking lift is perfect solution for home or public car parking. Space-saving design means
you can now stack one vehicle above another in the same space. Scissor car parking load capacity
and tall enough to fit light-duty and SUV cars. Compare to other traditional car parking lift, scissor
car parking lift are designed to increase density and more economically.

MAIN FEATURES:

  • Emergency decline valve in case of in ground double deck car elevator power off.
  • Submerged type 3 Hp Motor Hydraulic system with heavy duty cylinder.
  • Weather-resistance design for indoor and outdoor use.
  • Explosion-proof valves to protect hydraulic pipe rupture.
  • Space-saving design is perfect for public or home applications.
  • Manual Push Button operation with Cantrol Panel System.
  • MS Chequered plate sheet platform.
  • Lower profile entry ramp.
  • Automatic Mechanical locking systems.
  • Emergency Shut Down switch.
  • Warning light With Buzzer.
  • Single unit for 2 cars.

KEY FEATURE:

  • Platform Size: 2200mm(w)X4500mm (L)
  • Car Height: 1900 mm
  • System width: 2500 mm
  • Load Capacity: 2000 kg.
  • Speed: Up Operation – 40 To 60 Sec. -Min/Max
  • Power Supply: 3 Phase, 415v, 50hz
DOWANLOAD DATA SHEET
