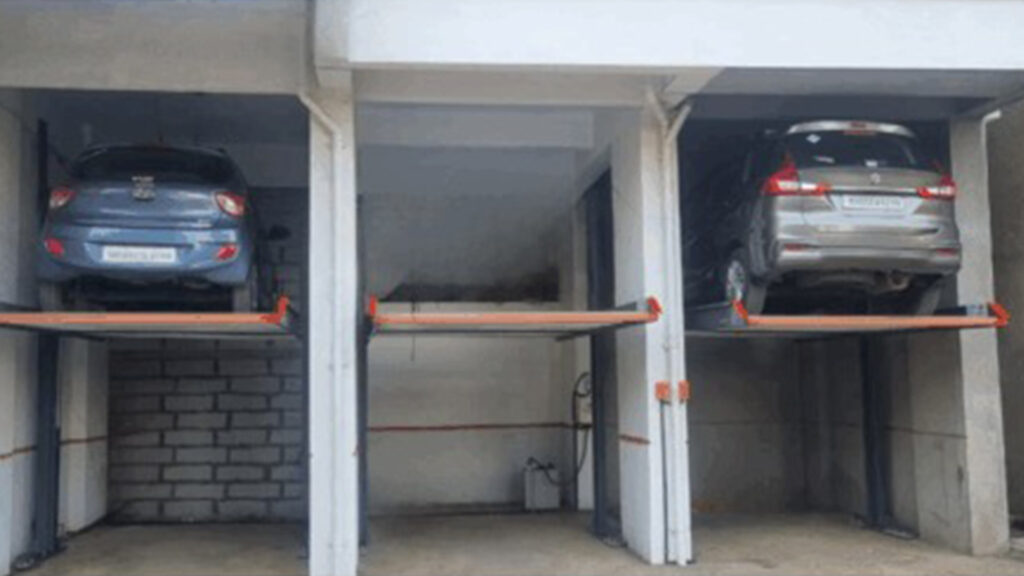

This is a Stack Parking where one car is parked on the ground level and one on the first level.
The Car on the ground level needs to be moved out before parking / removing the car on
the raised platform.

SPECIFICATIONS/ KEY BENEFITS:

  • Single unit for 2 cars.
  • Almost free maintenance.
  • Maximum Weight Carrying Capacity: 2000 kg
  • 2 MS columns with bases that are mounted on the floor.
  • Hot dipped Galvanized sheets Platform.
  • Simple up-down Push operation with emergency stop.
  • Limit Switch to prevent over shooting of Platform.
  • Suitable for indoor as well as outdoor installation.
  • Hydraulic system with one cylinder operated heavy duty Chain, rope wire and roller.
  • Mechanical Magnetic Solenoid Safety lock to prevent unwanted lowering of platform.
  • Power Supply: 3 Phase, 415v, 50Hz
DOWANLOAD DATA SHEET
This is a Stack Parking where one car is parked on the ground level and one on the first level.The Car on the ground level needs to be moved out before parking removing the car on the raised platform.

SPECIFICATIONS/ KEY BENEFITS:

  • Single unit for 2 cars.
  • Almost free maintenance.
  • Maximum Weight Carrying Capacity: 2000 kg
  • 2 MS columns with bases that are mounted on the floor.
  • Hot dipped Galvanized sheets Platform.
  • Simple up-down Push operation with emergency stop.
  • Limit Switch to prevent over shooting of Platform.
  • Suitable for indoor as well as outdoor installation.
  • Hydraulic system with one cylinder operated heavy duty Chain, rope wire and roller.
  • Mechanical Magnetic Solenoid Safety lock to prevent unwanted lowering of platform.
  • Power Supply: 3 Phase, 415v, 50Hz
DOWANLOAD DATA SHEET

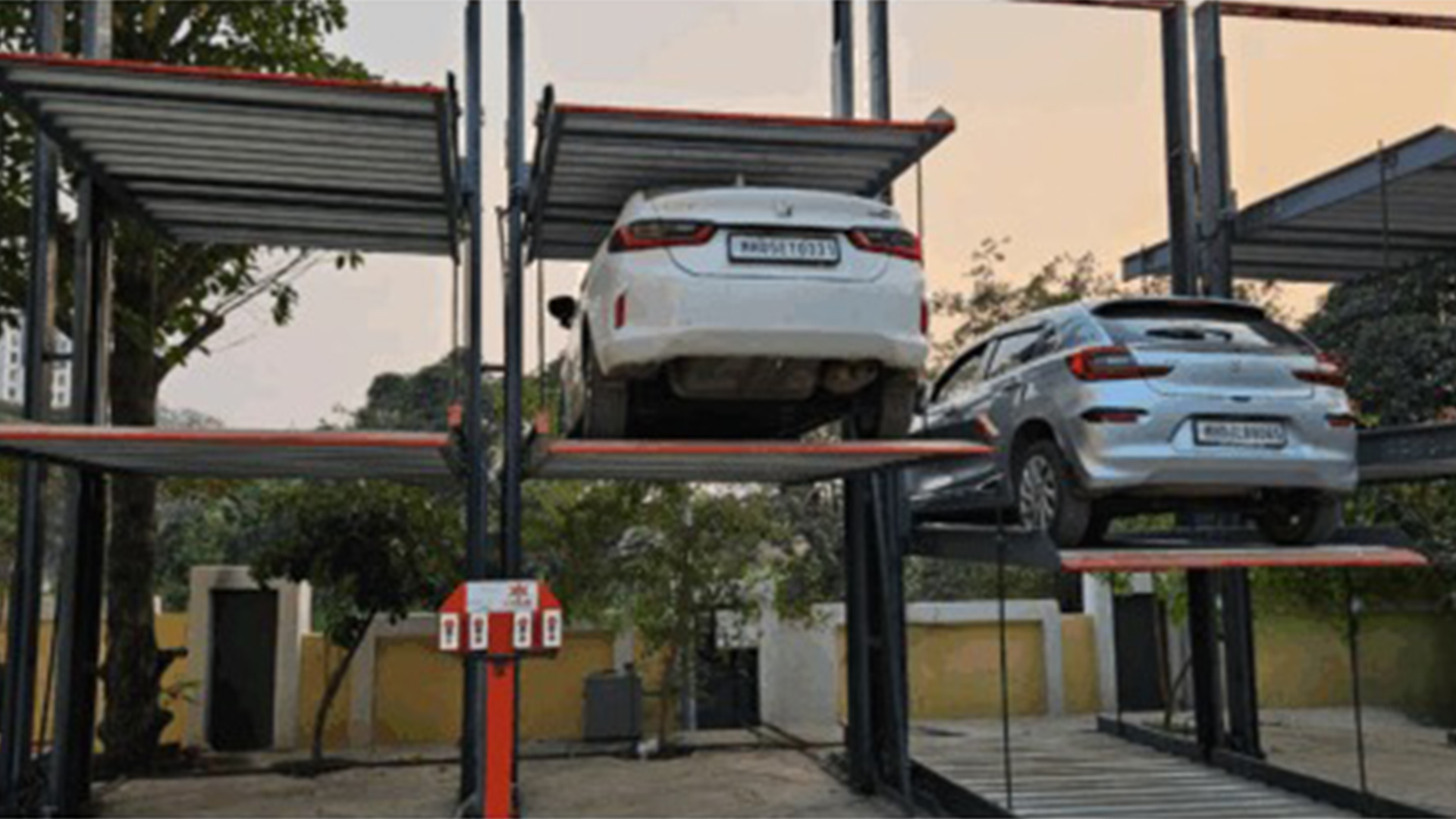

This system parking for three cars One on the ground level and remaining two cars on first and
second platform.The car onthe ground level and first level will need to be removed for lowering
the car parked on the second platform.

SPECIFICATIONS / KEY BENEFITS:

  • Single unit for 3 cars.
  • Almost free maintenance.
  • Maximum Weight Carrying Capacity: 2000 kg
  • 2 MS columns with bases that are mounted on the floor.
  • Hot dipped Galvanized sheets Platform.
  • Simple up-down Push operation with emergency stop.
  • Limit Switch to prevent over shooting of Platform.
  • Suitable for indoor as well as outdoor installation.
  • Hydraulic system with one cylinder operated heavy duty Chain, rope wire and roller.
  • Mechanical Magnetic Solenoid Safety lock to prevent unwanted lowering of platform.
  • Power Supply: 3 Phase, 415v, 50Hz
DOWANLOADDATASHEET
This system parking for three cars One on the ground level and remaining two cars on first and second platform. The car onthe ground level and first level will need to be removed for lowering the car parkedon the second platform.

SPECIFICATIONS / KEY BENEFITS:

  • Single unit for 3 cars.
  • Almost free maintenance.
  • Maximum Weight Carrying Capacity: 2000 kg
  • 2 MS columns with bases that are mounted on the floor.
  • Hot dipped Galvanized sheets Platform.
  • Simple up-down Push operation with emergency stop.
  • Limit Switch to prevent over shooting of Platform.
  • Suitable for indoor as well as outdoor installation.
  • Hydraulic system with one cylinder operated heavy duty Chain, rope wire and roller.
  • Mechanical Magnetic Solenoid Safety lock to prevent unwanted lowering of platform.
  • Power Supply: 3 Phase, 415v, 50Hz
DOWANLOADDATASHEET
