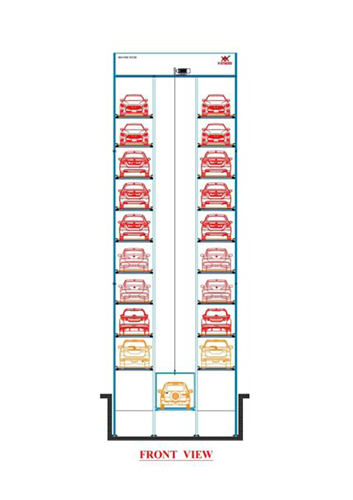

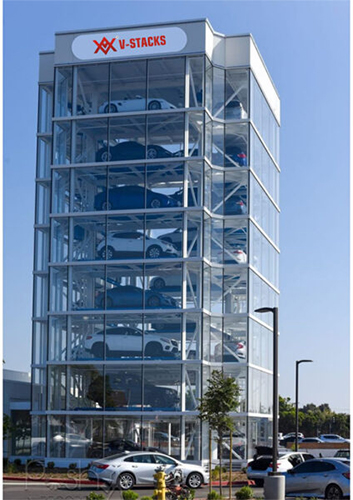

The Automatic Tower Parking system is designed with multi-levels and multi-rows and each level
is designed with a space as an exchanging space. All space can be lifted automatically except
the space in the top level. When the car needs to park or release, all spaces under this car space
and forms lifting channel under this space. In this case, the space will go up and down freely.
When it reaches the ground, the car will go out and in easily.

Specifications/ key Features:

  • Fast and automatic retrieval of cars from parking space without removing
    any car parked on ground level of system.
  • Extendable up to 25 parking levels
  • Motor chain, Rope wire operated sliding mechanism
  • PLC control panel with Touch screen display.
  • Car Size: 5050mm (L) x1850mm(W) x1700mm(H)
  • Platform Width: 1900mm – 2000mm
  • The system Load Capacity: 2000 kg
  • Lifting Time: 60 m/min
  • Sliding Time: 15-20 Seconds per platform.
  • Safety: Car size & Position sensors, door sensors fail
  • Supply: 220v, 415v, 3ph, 50 Hz.
  • Single unit for 2 cars.
